Description

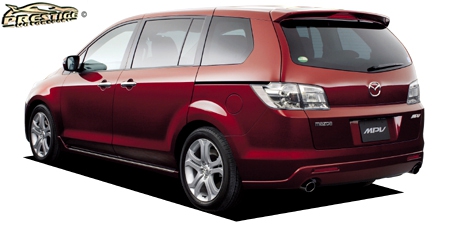

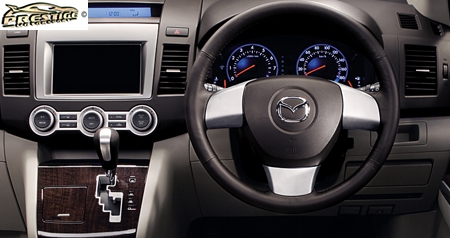

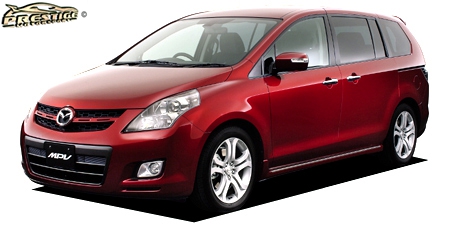

Model 23T
Chassis ID DBA-LY3P
Release date 2006.4~
Base price in Yen (¥) 3,100,000
Body dimensions (L x W x H mm) 4870 x 1850 x 1685
Passenger compartment (L x W x H mm) 2635 x 1565 x 1210
Wheelbase (mm) 2950
Track front / rear wheels (mm) 1610/1605
Weight (kg) 1910
Body type MV 1Box
Number of seats / doors 8 / 5 door

Safety equipment
Driver's air bag Standard
Front passenger air bag Standard
Side airbags Option
ABS brakes Standard
TRC (traction control) Standard
Safety belt pre-tensioner Standard
Safety belt load limiter Standard
Safety belts with automatic locking Standard
Child restraint points Standard
Body reinforcement Standard
Brake assist Standard
Body designed to absorb and disperse collision energy 採用
EBD (electronic brakeforce distribution) Standard
Anti theft device Standard
Additional equipment DSC(ダイナミック スタビリティ コントロールシステム:横滑り防止機構)

Comfort
Air conditioner Dual air conditioning
Power windows Standard
Central locking Standard
Adjustable steering column length Not
Adjustable steering column height Standard
Cruise control Option
Leather steering wheel Standard
Leather seats
Power front seat Not
Power rear seat Not
Wood trim Standard
Sunroof Option
Alloy wheels 18 inches standard
Folding seat split
Glass with UV filter Standard
Privacy glass Standard
Engine
Series L3-VDT
Type water cooling inline 4 cylinder DOHC 16-valves turbo
Bore x stroke length (mm) 87.5x94.0
Engine size 2260cc
Compression ratio 9.5
Fuel injection system 筒内直接噴射(DI)
Maximum power 245ps(180kW)/5000rpm
Maximum torque 35.7kg m(350N m)/2500rpm
Aspiration Turbo
Fuel tank capacity (L) 76 l
Fuel type Unleaded premium gasoline
Fuel consumption (L / 100 km) ---

Steering and suspension
Steering Power assist equipped rack&pinion
Front suspension McPherson Strut type
Rear suspension Multi-link
Front brake Ventilated disk
Rear brake Ventilated disk
Front wheel 215/55R18 94V
Rear wheel 215/55R18 94V
Turning circle 5.7m

Gearbox
Number of speeds / type 6AT
Drive Full-time 4WD
LSD Standard

Exterior equipment
Front fog lights Standard
Rear fog lights Not
Xenon headlights Standard
Additional front headlights Not
Front / rear spoiler Standard / Standard
Rear wiper Standard

Navigation, audio and video
Navigation system Option
GPS HDD
Audio Not
CD player Not

LEGEND

Standard     Unknown    Optional

Gear ratios
CVT 1 2 3 4 5 6 7 8 REVERSE
4.148 2.370 1.555 1.154 0.859 0.685 3.393
Original factory colours
Other black
Other Purple
Other Ashes
Other Cyan
Other Silver
Other Red
Other Blue
Other Pearl
Other Gold
